Product Overview

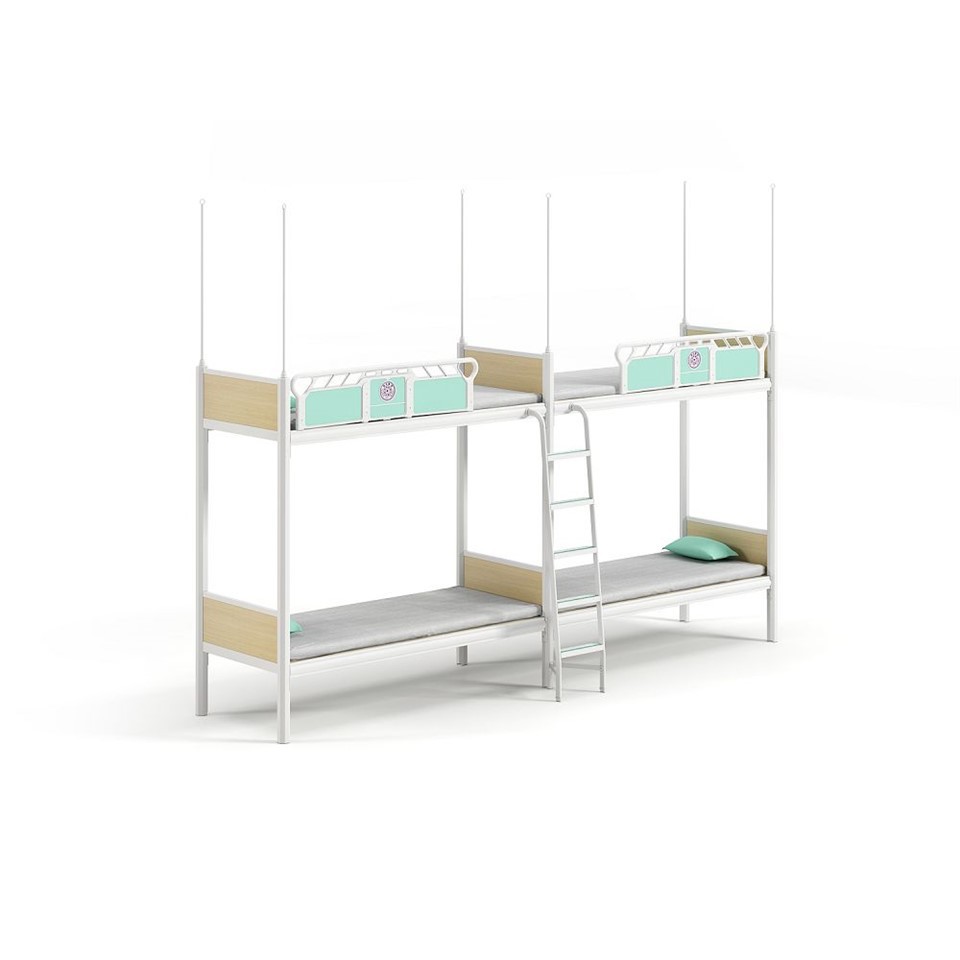

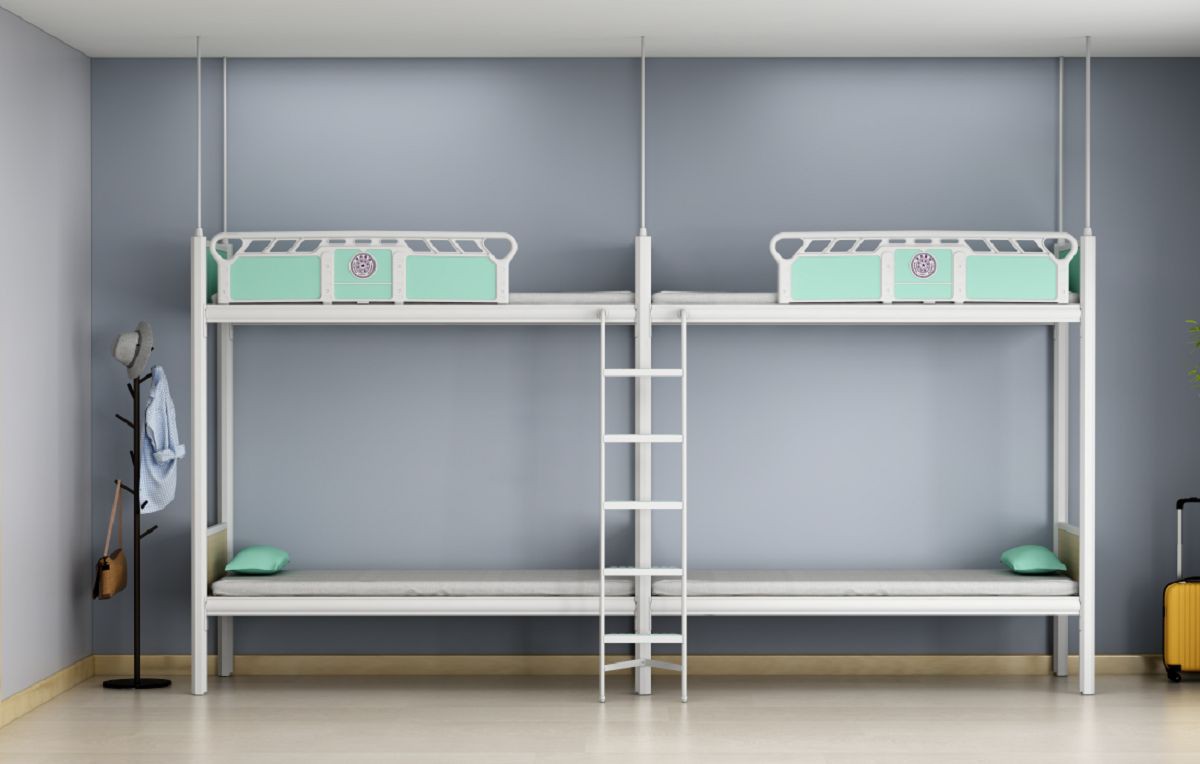

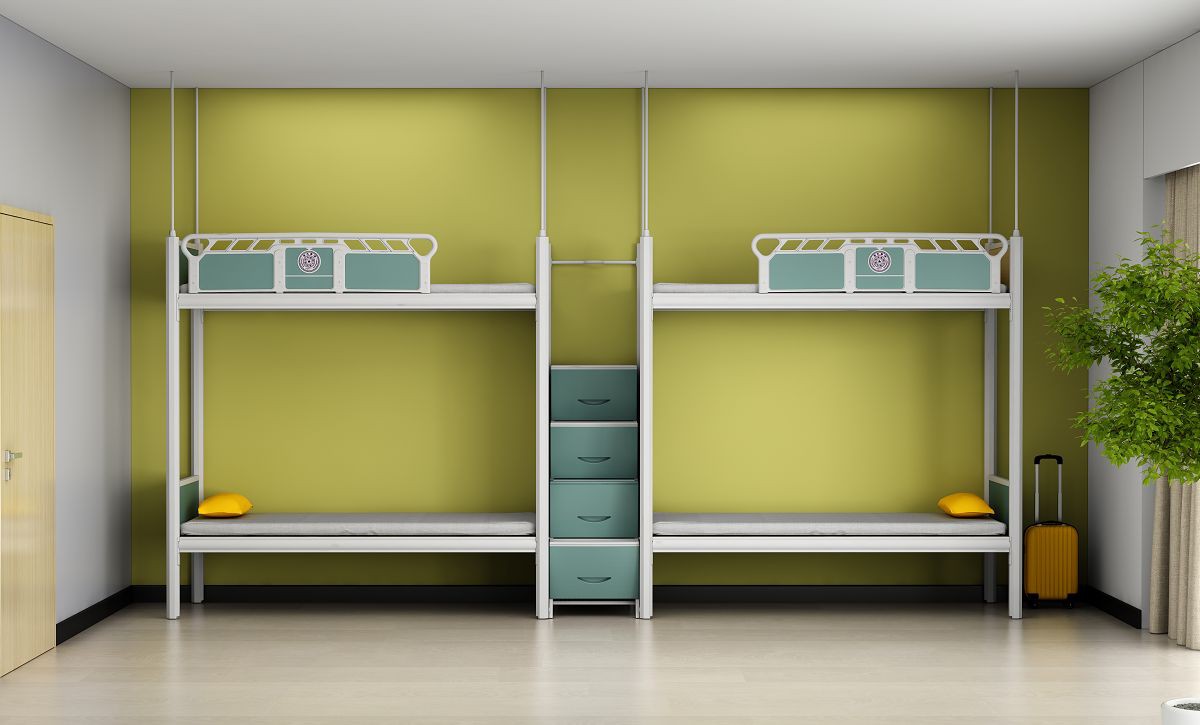

This dormitory double decker bed adopts a buckle-type detachable structure for convenient assembly, transportation, and long-term use in collective accommodation environments.
The bed features a full steel frame combined with solid Chinese fir bed boards, and comes equipped with:
- Foldable hooks
- Anti-slip climbing ladder
- Built-in shoe rack
- Retractable mosquito net frame
The overall structure is stable, durable, safe, and practical while improving storage efficiency and daily convenience.
Applications
This dormitory double decker bed is widely suitable for:
- School dormitories
- Student apartments
- Youth hostels
- Staff accommodations
- Collective living spaces
Designed for two-person use, it meets the requirements of safety, quiet operation, and efficient space utilization.
Materials & Surface Treatment
All steel components are manufactured from national standard steel using high-frequency welded closed steel tubing.
The frame undergoes an environmentally friendly ceramic conversion coating process, including phosphorus-free degreasing, water cleaning, and organic acid rust removal. The exterior surface is finished with polyester epoxy powder coating, providing:
- Smooth and even coating
- No flow marks
- No color difference
- No bubbles or surface defects
- Standard color: Gray-white.
The structure adopts carbon dioxide shielded welding technology. All welded areas are evenly finished without slag inclusion, porosity, false welding, or burn-through. Welded joints are finely polished for a smooth and clean appearance.
Structural Specifications
Bed Columns
- 65mm × 65mm × 1.2mm high-frequency welded galvanized curved steel tube
Bed Cross Beams
- ≥38mm × 83mm × 1.2mm galvanized closed steel tube
- Rounded corner design for anti-collision protection
Connection Hangers
- 2mm thick premium steel plate
- One-piece stamping forming
- Buckle-type connection structure
- ≥3 locking points
- Triple-side contact with columns for enhanced stability
Bed Support Tubes
- ≥20mm × 30mm × 1.0mm galvanized rectangular steel tube
- Quantity: 5 pieces
- Equipped with PP silent plastic pads for noise reduction
Side Guardrail
- Approx. 1620mm × 350mm
- Permanent mattress thickness warning line
- Custom school logo available
- One side equipped with 3 foldable hooks
Headboard & Footboard Guardrails
- Upper beam: ≥25mm × 25mm × 1.2mm square steel tube
- Embedded with 18mm multilayer board
- Bottom beam: 30mm × 50mm × 1.2mm steel tube
Climbing Ladder
The ladder is designed for safe and comfortable climbing.
● Ladder bracket: 38mm × 38mm × ≥1.2mm round steel tube
● Fixed to bed beam with screws
● Connection points equipped with ≥35mm eco-friendly rubber covers
The ladder steps are made from ≥1.5mm cold-rolled steel plate with molded anti-slip design.
● Step size: ≥320mm × 70mm
● Total quantity: 5 steps
Bed Board
The bed board is made from solid Chinese fir wood (non-water fir).
●Thickness: ≥16mm
● Double-side polished surface
● Moisture content ≤12%
● Reinforced with ≥5 hardwood support bars
● Support bar size: ≥30mm × 20mm
● Board gap ≤10mm
● Dynamic/static load capacity: ≥300KG
The structure ensures durability, stability, and quiet performance for long-term dormitory use.
Mosquito Net Frame & Shoe Rack
The retractable mosquito net frame is made from 19mm × 1.0mm steel tube with bending forming technology and can be hidden inside the bed columns when not in use.
The shoe rack measures approximately 2100mm × 300mm with a ground clearance of 120mm, manufactured from 20mm × 20mm × 1.0mm square steel tube.
This dormitory double decker bed combines sleeping, storage, and daily utility functions in one integrated design.
Installation & Dimensions
The bed must be securely fixed to the inner wall to prevent shaking when subjected to external pulling force.
Standard Size
W900 × D2100 × H2150mm
