Product Introduction:
This Anti-Static PVC Floor is a full-steel ceramic-laminated raised access flooring system designed for environments requiring electrostatic protection and high load-bearing performance, such as computer rooms, laboratories, data centers, and electronic manufacturing facilities.
Send Inquiry
Description
Technical Parameters

Product Overview



This Anti-Static PVC Floor is a full-steel ceramic-laminated raised access flooring system designed for environments requiring electrostatic protection and high load-bearing performance, such as computer rooms, laboratories, data centers, and electronic manufacturing facilities.



It provides effective anti-static protection to prevent damage to precision electronic equipment while forming an elevated floor space for convenient installation and maintenance of cables and pipelines.



Materials & Structure



The floor panel is made of full steel with a ceramic laminated surface. It features high hardness (Mohs hardness level 7), no radioactive elements, strong stain resistance, and easy maintenance.



The surface is non-combustible and reaches A-class fire resistance. It supports a concentrated load of ≥400Kg and a uniform load of ≥13,350N, ensuring stable performance under heavy-duty usage.



As a core component of the Anti-Static PVC Floor system, the panel structure also meets environmental protection standards with zero radioactive contamination.



Support System



The supporting structure includes high-strength pedestal and crossbeam components:

  • Upper support plate thickness: ≥3mm
  • Lower support plate thickness: ≥2mm
  • Round tube wall thickness: ≥0.9mm
  • Crossbeam thickness: ≥0.8mm with sound-dampening pads

All support components are treated with cold galvanization, providing:

  • Corrosion resistance
  • Rust protection
  • Environmental safety
  • Long service life

This ensures stable performance of the Anti-Static PVC Floor even under continuous heavy load conditions.

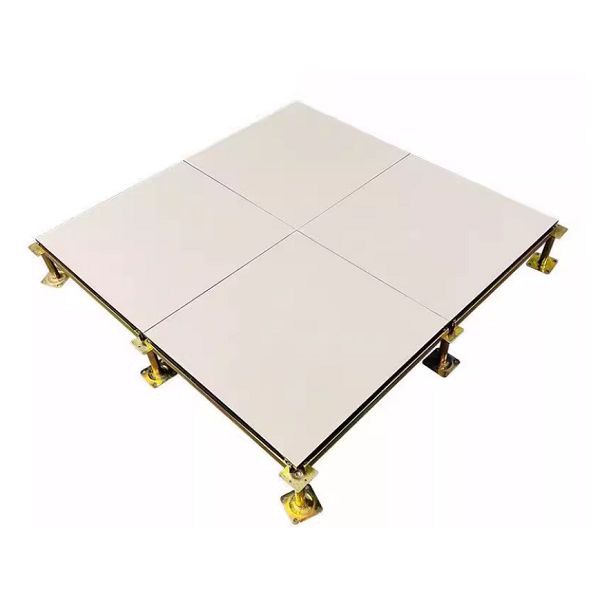

product-600-600

Performance & Certification



The system complies with national standards for mechanical strength, appearance quality, and fire resistance.

It is tested and certified for:

  • Load-bearing performance
  • Fire safety rating
  • Structural stability
  • Surface durability

These certifications ensure that the Anti-Static PVC Floor is suitable for high-standard technical environments.

product-856-540


Dimensions



Panel size: 600 × 600 × 40mm

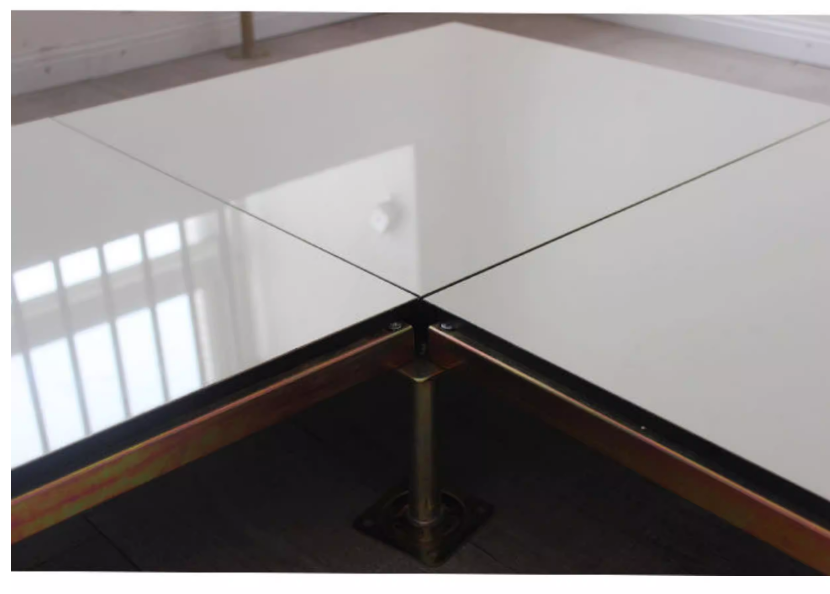

product-830-594
